A loudspeaker can employ exquisite drivers, a beautifully finished cabinet, and costly internal parts yet still fail to move the listener. The reason is often found in the relationship between its drivers. A guide to crossover design begins there: not with a parts list, but with the demanding art of allowing several transducers to speak as one coherent musical voice.
The crossover is the network that directs low, middle, and high frequencies to the drivers best suited to reproduce them. In a fine loudspeaker, its task reaches far beyond dividing the audible range. It influences tonal character, dynamics, image focus, soundstage scale, and the ease with which a voice or violin occupies believable space. When it is conceived with care, the crossover disappears. What remains is the performance.
A Guide to Crossover Design: Start With the Drivers
Crossover design is inseparable from driver selection. A woofer, midrange, and tweeter do not behave like perfectly neutral instruments waiting to be assigned a frequency band. Each has its own resonances, dispersion pattern, sensitivity, distortion profile, impedance behavior, and preferred operating range.
A designer first studies where each driver is most composed and expressive. A woofer may deliver weight and authority at low frequencies, but begin to narrow its radiation pattern or develop breakup behavior higher in its range. A tweeter may offer extraordinary air and transient delicacy, yet require protection from energy lower than it can reproduce cleanly. The crossover point must respect both realities.
This is why a crossover frequency cannot be chosen merely because it appears sensible on a chart. The ideal handoff depends on the specific drivers, the cabinet, the baffle dimensions, and the intended listening distance. It also depends on what the ear perceives most readily. The region where voices, piano, guitars, and many orchestral fundamentals reside deserves particular sensitivity. Small errors there can make a system sound detached, nasal, or mechanically assembled rather than musically whole.
The Crossover Is an Acoustic, Not Just Electrical, Design
A common misunderstanding is that a published electrical filter slope tells the complete story. It does not. A 12 dB-per-octave electrical network may not produce a 12 dB-per-octave acoustic response once the driver’s natural rolloff, cabinet diffraction, and impedance characteristics are involved.
What matters at the listening position is the acoustic sum of the drivers. Their outputs must meet at the right level, over the right range, with the right timing. A network may look elegant in schematic form and still produce a hollow image or an uneven tonal transition in the room.
Filter order is therefore a choice of trade-offs. Gentler slopes can preserve broad overlap and, in certain applications, offer a pleasing sense of continuity. They also ask more of each driver, because the drivers continue to reproduce more energy outside their most comfortable range. Steeper slopes can better control resonances and protect delicate units, but they introduce greater complexity and require exacting attention to phase behavior.
There is no universally superior topology. First-order, second-order, third-order, and fourth-order approaches can all yield exceptional results when used for the right drivers and the right musical objective. The question is never which slope is most fashionable. The question is whether the finished loudspeaker presents a soprano, a snare drum, or a bowed cello with convincing tonal truth and unforced continuity.
Phase Alignment Shapes the Image
At the crossover region, two drivers reproduce some of the same information. If their phase relationship is poorly controlled, they can partially cancel each other or create excess energy. The result may be a dip or peak in response, but the audible consequence is often more subtle: unstable imaging, blurred depth, or a vocal image that seems to float apart as the listener moves slightly off center.
Physical driver placement matters as much as the circuitry. A tweeter mounted forward of a woofer does not reach the listener at the same instant. Cabinet geometry, acoustic center, and the slope of the front baffle can all influence alignment. The crossover network may compensate for part of this behavior, but it cannot be designed in isolation from the enclosure.
A properly integrated system allows the image to lock into place without sounding artificially etched. Instruments should occupy distinct locations, yet remain connected by the natural acoustic of the recording. That balance is one of the most persuasive signs of accomplished crossover work.
Component Quality Supports, but Does Not Replace, Judgment

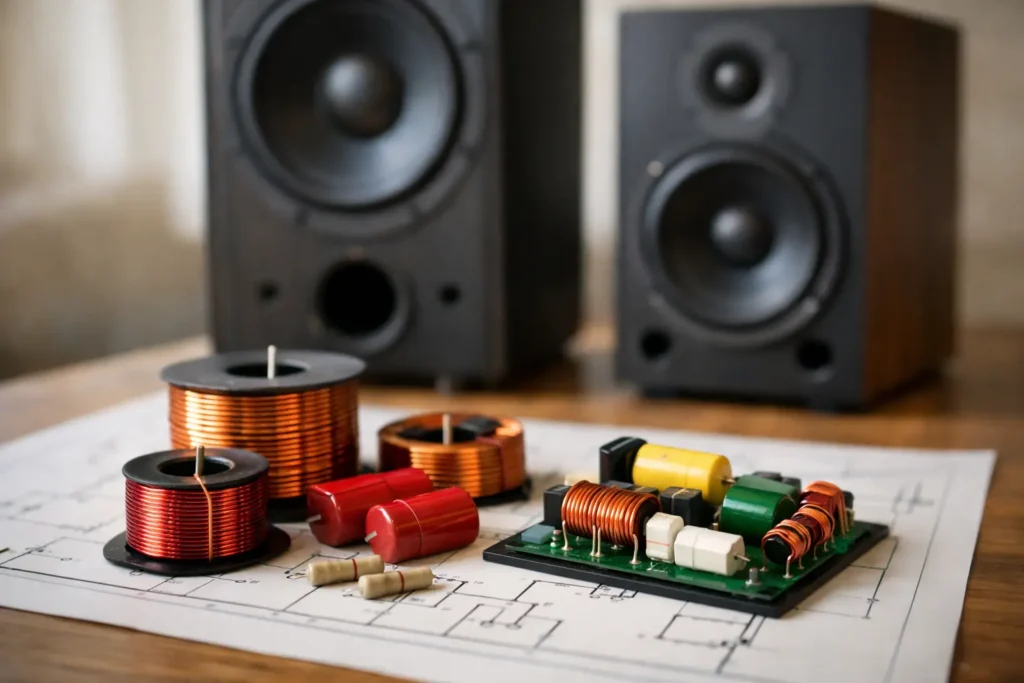

Capacitors, inductors, and resistors are not interchangeable in a high-end crossover. Their electrical tolerances, resistance, dielectric properties, power handling, and physical construction all influence the result. In a revealing loudspeaker, a poorly chosen component can veil low-level detail, soften dynamic contrasts, or shift tonal balance.
Still, premium components do not rescue an unsuitable circuit. An expensive capacitor in the wrong position is simply an expensive mistake. The circuit must first solve the acoustic problem: flattening or shaping a driver response where necessary, managing impedance, suppressing unwanted resonances, and blending outputs through the transition region.
Inductor resistance, for example, can affect a woofer’s damping and bass character. A resistor used to match driver sensitivity may influence both the tonal balance and the amplifier load. Capacitor values determine more than a nominal crossover frequency because they interact with the real, changing impedance of the driver. Every choice belongs to a complete system, not a shopping list.
This is one reason finely voiced loudspeakers often require repeated listening as well as measurement. Measurements reveal behavior that the ear may not easily isolate. Listening reveals whether the technical solution communicates music with freedom, color, scale, and emotional presence.
Cabinet and Room Complete the Equation
The crossover never operates in a vacuum. The cabinet’s front baffle causes diffraction, which can alter response through the midrange and treble. Internal volume and tuning influence bass extension and driver motion. Even the speaker grille, if one is used, can affect high-frequency behavior.
Then there is the room. A loudspeaker may measure with admirable smoothness in a controlled environment yet sound too forward, too warm, or too restrained in a particular home. Nearby walls reinforce bass. Reflective surfaces can energize the upper range. Furniture, drapery, and speaker placement shape the balance the listener finally hears.
This does not mean crossover design should chase the anomalies of one room. A loudspeaker must first be intrinsically balanced. But a sophisticated designer considers how direct sound and reflected sound work together, particularly through the crossover regions where driver dispersion changes. Broad, even radiation often contributes to a more natural tonal balance across real living spaces, not just one ideal seat.
Passive and Active Crossovers Serve Different Purposes
Most traditional high-end loudspeakers use passive crossovers placed between the amplifier and the drivers. A well-executed passive network offers elegance and practicality, allowing one amplifier channel to drive each speaker while preserving a carefully developed musical balance.
Active crossovers divide the signal before amplification, with separate amplifier channels dedicated to individual drivers. They can provide substantial control, particularly in studio monitoring, DSP-based systems, and designs that benefit from precise equalization or time alignment. Their advantages are real, but more electronics, amplification, and setup decisions also become part of the signal path.
Neither approach is automatically more refined. The best choice depends on the design goal. For a luxury home loudspeaker, the meaningful measure is whether the system conveys the scale of an orchestra, the breath behind a singer, and the rhythmic authority of a recorded performance without drawing attention to its mechanics.
Voicing Is Where Engineering Becomes Art
A crossover may be mathematically sound and still need voicing. This is the disciplined listening process through which a designer assesses the finished loudspeaker with a wide range of recordings, levels, and musical textures. A string quartet exposes tonal discontinuity. A closely recorded vocal reveals presence-region imbalance. Large-scale symphonic music tests dynamic composure and spatial organization. Well-recorded bass evaluates control, pitch definition, and integration with the midrange.
Voicing is not an excuse for abandoning engineering. It is the final refinement of engineering toward human perception. The ear is remarkably alert to timing, timbre, and the familiar character of acoustic instruments. It knows when a piano loses its harmonic body across registers, or when a cymbal carries brightness without convincing metallic shimmer.
At Gershman Acoustics, the enduring pursuit is not sound that merely impresses in the first minute. It is sound that continues to reveal the intention, atmosphere, and emotional gravity of a performance over years of listening.
When auditioning a loudspeaker, listen through the crossover rather than at it. Choose recordings you know deeply and notice whether a melody passes from bass to midrange to treble without a change in scale or personality. If the loudspeaker makes that transition feel effortless, the design is doing what the finest craftsmanship always does: serving the music so completely that you forget the work behind it.
